Quick Boil Element

Get meals to the table faster with the powerful 3,000W Quick Boil element.
Flexible Five Element Cooktop

Experience ultimate cooking flexibility with a cooktop that has five elements designed to handle all of your cooking needs.
Even Baking Technology

Designed to deliver even baking results, every time.

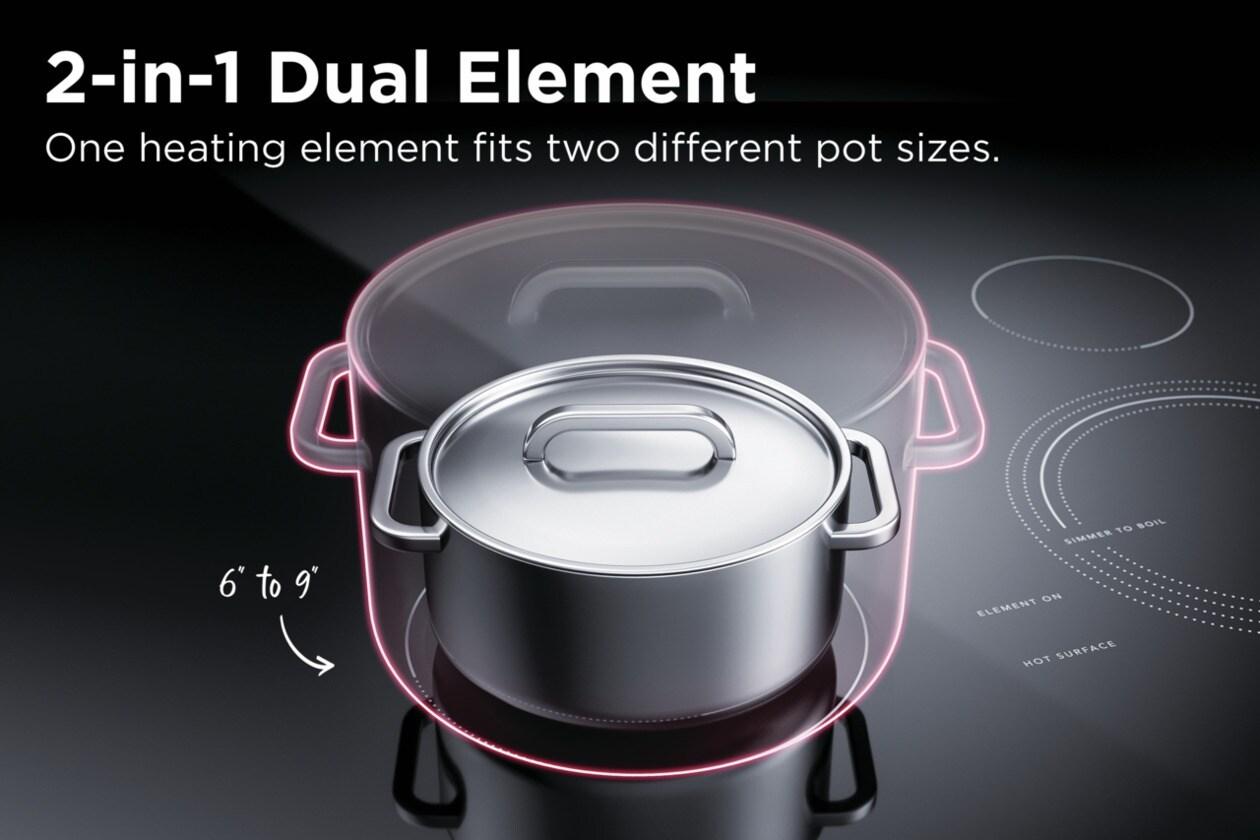

SpaceWise® Dual Expandable Element

Get two elements in one with the Dual Expandable element - a 6" inner ring for smaller pots and pans and a 9" outer ring for larger cookware.
5.3 Cu. Ft. Oven Capacity

Large 5.3 cu. ft. oven capacity allows you to cook more at once.
Extra Wide Store-More™ Storage Drawer

Our redesigned Store-More™ Storage drawer is now even wider - allowing you to store any unused oven racks, baking trays and more!
- Quick Boil Element
- Flexible Five Element Cooktop
- Even Baking Technology
- SpaceWise® Dual Expandable Element
- 5.3 Cu. Ft. Oven Capacity
- Extra Wide Store-More™ Storage Drawer
- Cooktop Keep Warm Zone
- Proudly Assembled in the USA
| Product Line | Electric Range |
| Power Type | Electric 240v |
| Size | 30' |
| Installation Type | Free-Standing |
| Factory | Springfield |
| Color | Black |
| Cooktop | |
| Cooking Surface Type | Smooth |
| Element On Indicator Light | Yes |
| Hot-Surface Indicator Light | Yes |
| Cooktop Performance | |
| Right Front Element Burner Size | 9' |
| Right Rear Element Burner Size | 6' |
| Left Front Element Burner Size (Small) | 6' |
| Left Front Element Burner Size (Large) | 9' |
| Left Rear Element Burner Size | 6' |
| Right Front Element Burner | 3000 Watts |
| Right Rear Element Burner | 1200 Watts |
| Left Front Element Burner (Small) | 1400 Watts |
| Left Front Element Burner (Large) | 3000 Watts |
| Left Rear Element Burner | 1200 Watts |
| Center Rear Element Burner | 100 Watts |
| Keep Warm Burner Location | Center Rear |
| Cooking Controls | |
| Bake | Yes |
| Broil | Yes |
| Kitchen Timer | Yes |
| Off | Yes |
| Oven Light | Yes |
| Preheat | Yes |
| Up / Down Arrow | Yes |
| Warm Zone | Yes |
| Cooking Controls Function | |
| Program Fahrenheit or Celsius | Yes |
| Oven | |
| Bake Element | 2600 Watts |
| Bake Element Pass | 4 |
| Bake Element Type | Raised |
| Broil Element | 3000 Watts |
| Broil Element Pass | 4 |
| Number of Rack Positions | 6 |
| Oven Interior Color | Midnight Black |
| Oven Light Quantity | 1 |
| Oven Light Type | Halogen |
| Oven Light Watts | 40 Watts |
| Rack Position Type | Embossed |
| Rack Type 1 | Flat |
| Rack Type 1 Quantity | 2 |
| Drawer | |
| Drawer Handle Style | Integrated |
| Drawer Type | Storage |
| Display | |
| Control Location | Rear |
| Display Interface Color | White |
| Display Type | LED |
| Dimensions and Volume | |
| Minimum Height | 46 3/4' |
| Maximum Height | 47 3/4' |
| Width | 30' |
| Depth | 26' |
| Depth With Door 90° Open | 47 5/16' |
| Depth With Handle | 28 1/2' |
| Oven Interior Height | 18 1/8' |
| Oven Interior Width | 25 3/16' |
| Oven Interior Depth | 19 7/8' |
| Oven Capacity | 5.3 Cu. Ft. |
| Electrical Specifications | |
| Connected Load @ 240V | 12 kW |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
| Installation | |
| Adjustable Leveling Legs | Yes |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Product Weight | 160 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Safety Certifications and Approvals | |
| UL Listed | Yes |
| RoHS | Yes |
