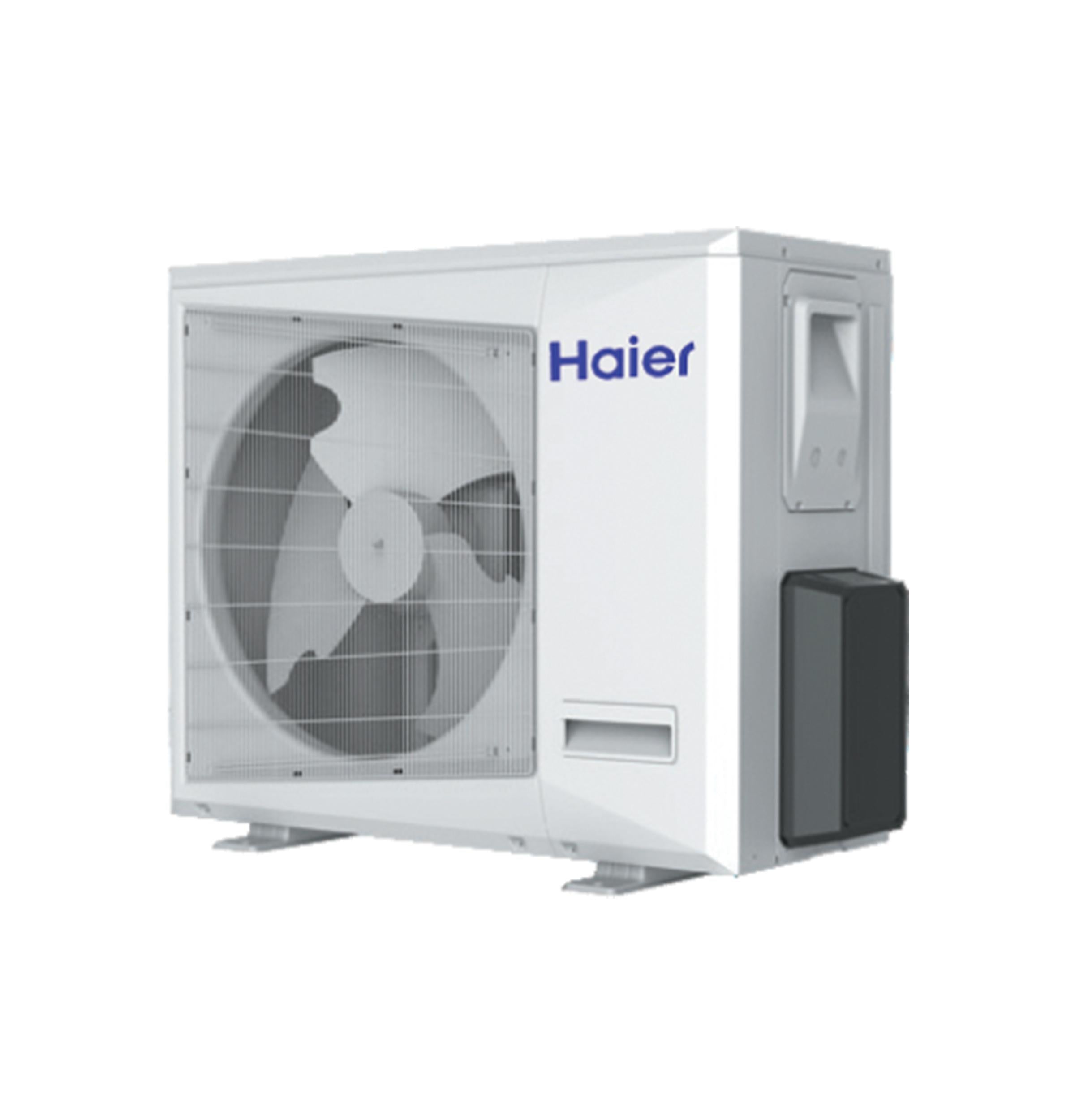

Ge Appliances UUC148WCDA 208-230V 48,000 Btu Side Discharge Air Conditioner Condensing Unit
Ge Appliances UUC148WCDA 208-230V 48,000 Btu Side Discharge Air Conditioner Condensing Unit
SKU: UUC148WCDA
UPC: 84691854869
Colors:
WhiteCall us at (800) 288-1647 for expert assistance in finding the perfect alternative.
Couldn't load pickup availability
When Will I Get My Order?
x
208-230V 48,000 BTU Side Discharge Air Conditioner Condensing Unit
Side-discharge configuration is perfect for installation in limited space.
Easier contractor equipment transportation and installation.
Sound-dampening features produce operation at noise levels as low as 52dB.
Compatible with many 24VAC thermostat.
Independent 3rd party coil match available.
Dimensions & Capacity Width: 43 3/8"
Height: 34 1/4"
Depth: 20 7/8"
Cooling Power: 48000 btu
Easier contractor equipment transportation and installation.
Sound-dampening features produce operation at noise levels as low as 52dB.
Compatible with many 24VAC thermostat.
Independent 3rd party coil match available.
Dimensions & Capacity Width: 43 3/8"
Height: 34 1/4"
Depth: 20 7/8"
Cooling Power: 48000 btu
- Compact Size
- Light Weight
- Quiet Operation
- 24V System
- AHRI Matching Indoor Coil
- See specification book for full heating, cooling, and system details
| CAPACITY | |
| Cooling BTUH (MAX) | 46000 Btu |
| APPEARANCE | |
| Color Appearance | White |
| POWER / RATINGS | |
| Cooling Rated Capacity BTU/Hr | 46,000 |
| Minimum Circuit Amp | 26 |
| WARRANTY | |
| Parts Warranty | 10-Year Limited Parts and Compressor Warranty with Registration Limited 5-Year Parts and Compressor |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 198 lb |
| Suction O.D. Refrigerant Line | 3/4' |
| Liquid O.D. Refrigerant Line | 3/8' |
| Overall Depth | 20.875 in |
| Factory Charge (pounds) | 8.8000001907349 lb |
| Overall Width | 43.375 in |
| Overall Height | 34.25 in |
| Approximate Shipping Weight | 198 lb |
| FEATURES | |
| Style | Side-Discharge |
| Model Type | Indoor |
| Refrigerant Type | R410A |
| Maximum Line Length (Ft/M) | 98/30 |
| Series | Side-Discharge |
| Maximum Height (Ft/m) | 50/15 |
| Temperature Range - Cooling Mode | 50-115 F (10-46 C) |
| SEER | 14 |
| Compressor Type | Scroll |
| Maximum Fuse Size A | 40 |
| EER | 11.7 |
| Fan Speed RPM | 900 |
| Outdoor Noise Level | 60 dBA |
| Outdoor Airflow CFM | 2600 |
| CFM with Rated Coils | 1325 |
| Aspen Model | C(A,C,E)48C34+TDR |
| Product Type | Multi Zone Single Zone |
