KitchenAid Buy More Save More Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying KitchenAid appliances. Download Valid: 06/11/2025-07/09/2025

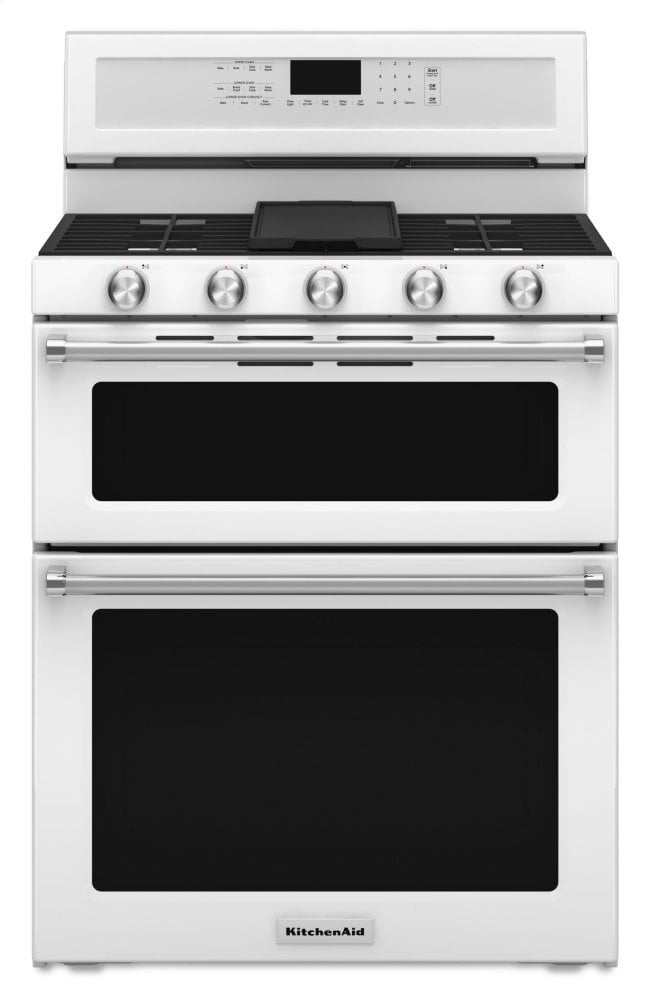

6.0 Cu. Ft. Total Capacity

Combined upper and lower oven capacities provide more room to cook multiple dishes at the same time.
Professionally-Inspired Design

combines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid(R) Badge, a symbol of uncompromised quality.
EasyConvect Conversion System

Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
- Even-Heat True Convection - features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.
- 5 Burners (17k, 10k, 7.3k, 5k, 5k) - provides the perfect range of cooking power from 5,000 to 17,000 BTU, so you can go from a rolling boil to a delicate simmer.
- Glass Touch Controls - Offer an intuitive, easy-to-use touch screen experience.
- SatinGlide(R) Rack - Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
- Hidden Bake - Covers up the baking element, making it easier to wipe away spills.
| Specifications | |
| Dimensions | |
| Capacity | 6.00 |
| Depth Closed Including Handles | 28-1/2 in |
| Depth With Door Open 90 Degree | 45-1/2 in |
| Height | 47-3/8 in |
| Lower Oven Capacity | 3.9 cu. ft. |
| Upper Oven Capacity | 2.1 cu. ft. |
| Width | 29-15/16 in |
| Configuration and Overview | |
| Fuel Type | Gas |
| Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
| Range Type | Freestanding Double Oven |
| Size | 30 in |
| UL | UL |
| Appearance | |
| Door Type | Glass Window |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Oven Details | |
| Automatic Convection Conversion Temperature Adjust | Yes |
| Bake Element Power | 10000 BTU Upper-16000 BTU Lower |
| Broiler Location | Top of Oven |
| Convection Element Type | Single-Fan |
| Convection Functions | Bake, Roast |
| Drawer Type | None |
| Hidden Bake Element | Yes |
| Interior Color | Blue |
| Lower Oven Interior Depth | 18-3/4 in |
| Lower Oven Interior Height | 14-22/25 in |
| Lower Oven Interior Width | 25.0 in |
| Number of Oven Lights | 1 |
| Number of Oven Racks | 1 Upper-2 Lower |
| Number of Rack Guides | 2 Upper-5 Lower |
| Oven Control Location | Backguard |
| Oven Control Type | Electronic Touch |
| Oven Cooking System | Thermal Upper-Convection Lower |
| Oven Light Type | Incandescent |
| Oven Rack Type | 1 Gliding Roll-Out, 2 Heavy Duty |
| Power On Indicator Light | Yes |
| Upper Oven Interior Depth | 19-1/4 in |
| Upper Oven Interior Height | 7-3/8 in |
| Upper Oven Interior Width | 25.0 in |
| Cooktop Details | |
| Center Rear Element-Burner Power | 7350 BTU |
| Cooktop Control Knob Type | Metal |
| Cooktop Control Location | Front |
| Cooktop Control Type | Knobs |
| Cooktop Element Style | Sealed Burner |
| Cooktop Surface Color | White |
| Cooktop Surface Material | Porcelain Coated Steel |
| Grate Details | Dishwasher Safe, Matte Finish, Continuous, Cast Iron Grates |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Left Front Element-Burner Power | 17,000 BTU |
| Left Front Element-Burner Type | Burner |
| Left Rear Element-Burner Power | 5000 BTU |
| Left Rear Element-Burner Type | Burner |
| Number of Cooking Element-Burners | 5 |
| Number of Grates | 2 |
| Power Outage Compatible | No |
| Right Front Element-Burner Power | 10,000 BTU |
| Right Front Element-Burner Type | Burner |
| Right Rear Element-Burner Type | Burner |
| Details | |
| Bake Element Power | 10000 BTU Upper-16000 BTU Lower |
| Broiler Element Power | 10000 BTU-Upper |
| Convection Element Type | Single-Fan |
| Number of Rack Guides | 2 Upper-5 Lower |
| Oven Cleaning Type | Self-Cleaning |
| Electrical | |
| Hz | 60 |
| Power Cord Included | No |
| Controls | |
| Electronic Display Type | Stainless Steel |
| Knob Color | Stainless Steel |
| Knob Type | Metal |
| Features | |
| Power Outage Compatible | No |
| Exterior | |
| Oven Window Size | Large |
| GDS | |
| GPC Code | 10003690 |
| IsInvoiceUnit | true |
| IsOrderableUnit | true |
| Product Type | EA |
| UDEX | 1100400623 |
| isBaseUnit | true |
| isConsumerUnit | true |
