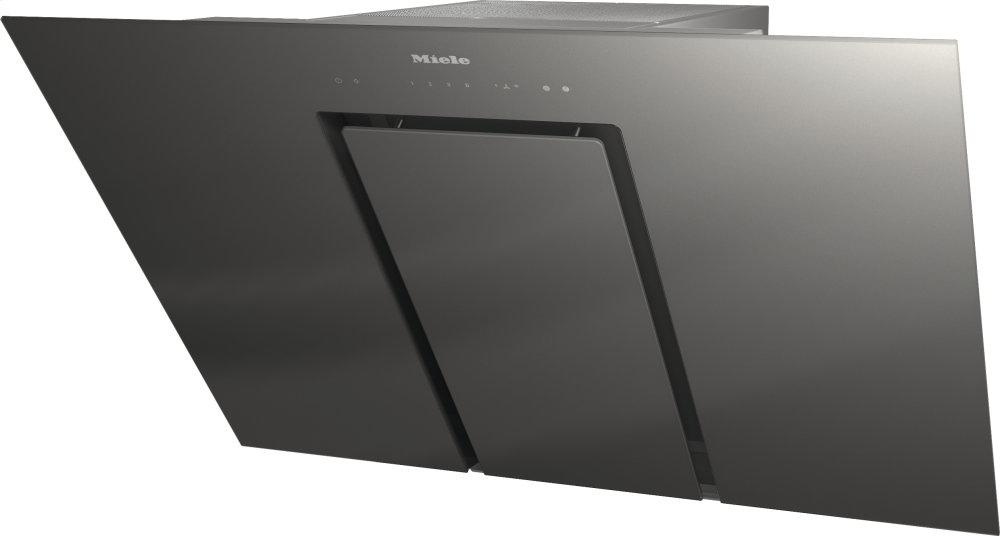

Miele DA6498WPUREGREYGRAPHITEGREY Da 6498 W Pure Grey - Wall Ventilation Hood With Energy-Efficient Led Lighting And Touch Controls For Simple Operation.
Miele DA6498WPUREGREYGRAPHITEGREY Da 6498 W Pure Grey - Wall Ventilation Hood With Energy-Efficient Led Lighting And Touch Controls For Simple Operation.
Colors:
GrayCall us at (800) 288-1647 for expert assistance in finding the perfect alternative.
Couldn't load pickup availability
When Will I Get My Order?
x
Delayed Shutdown
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Filter Saturation Indicator
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Safety Turn Off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Miele CleanCover
Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
Handcrafted In Germany
Know-how and craftsmanship: Our expertise goes into every ventilation hood, from development to finished product.
Edge Vented
Efficient and beautiful: With edge vented the grease filters are concealed by a stainless steel or glass panel.
Stainless-Steel Grease Filters (10-Layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Active AirClean Filter
Efficient odor absorption: The disposable filter with active charcoal must be replaced regularly.
Lots of headroom ��� 35 1/2 (899) in (mm) wide with an exclusive glass design
Unique user convenience ��� Con@ctivity
Powerful ��� in Booster level
Energy-efficient and quiet
Safe and easy to clean - Miele CleanCover
- Lots of headroom - 35 1/2 (899) in (mm) wide with an exclusive glass design
- Unique user convenience - Con@ctivity
- Powerful - on the booster setting
- Energy-efficient and quiet
- Safe and easy to clean - Miele CleanCover
| Construction type | |
| Wall ventilation hood | • |
| Operating modes | |
| Recirculated mode | Convertible |
| OdorFree charcoal filter (order separately) | DKF 25-P |
| Design | |
| Color | Graphite grey |
| Edge extraction | • |
| Control panel | |
| Electronic controls | • |
| Touch controls | • |
| Power levels (number excl. Intensive) | 3 |
| Programmable Intensive switch-off | • |
| Delayed shutdown for 5 or 15 minutes | |
| Grease filter saturation indicator | • |
| Programmable grease filter saturation indicator | • |
| Programmable charcoal filter saturation indicator | • |
| Cleaning convenience | |
| • | |
| Filter system | |
| Number of dishwasher-safe stainless-steel grease filters | 1 |
| Lighting | |
| LED ClearView lighting | • |
| Number x W | 2 x 3 W |
| Light intensity in Lx | 440 lx |
| Color temperature in K | 3500 Kelvin |
| Light dimmer function | • |
| Blower | |
| Dual-action blower | • |
| AC motor | • |
| Extraction | |
| Air throughput | Values upon request |
| Safety | |
| Safety shut-off | • |
| Single-ply safety glass (ESG) | • |
| Technical data | |
| 21 3/4 (550) | |
| 21 3/4 (550) | |
| Overall min. height for vented and external in in. (mm) | 21 3/4 (550) |
| Overall max. height for vented and external in in. (mm) | 21 3/4 (550) |
| Overall min. height for recirculation in in. (mm) | 21 3/4 (550) |
| Overall max. height for recirculation in in. (mm) | 21 3/4 (550) |
| Canopy width in in. (mm) | 35 1/2 (899) |
| Canopy height in in. (mm) | 21 3/4 (550) |
| Depth of hood canopy in in. (mm) | 20 7/8 (530) |
| Net weight in lbs. (kg) | 56 (25.0) |
| Length of electrical wire in ft. (m) | 4 (1.5) |
| Standard plug fitted | • |
| Hard-wired | • |
| Total connected load in kW | 0.36 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
| Installation notes | |
| Vent connection at top | • |
| Vent connection at top and rear | • |
| Diameter of vent connection in in. (mm) | 6 (150) |
