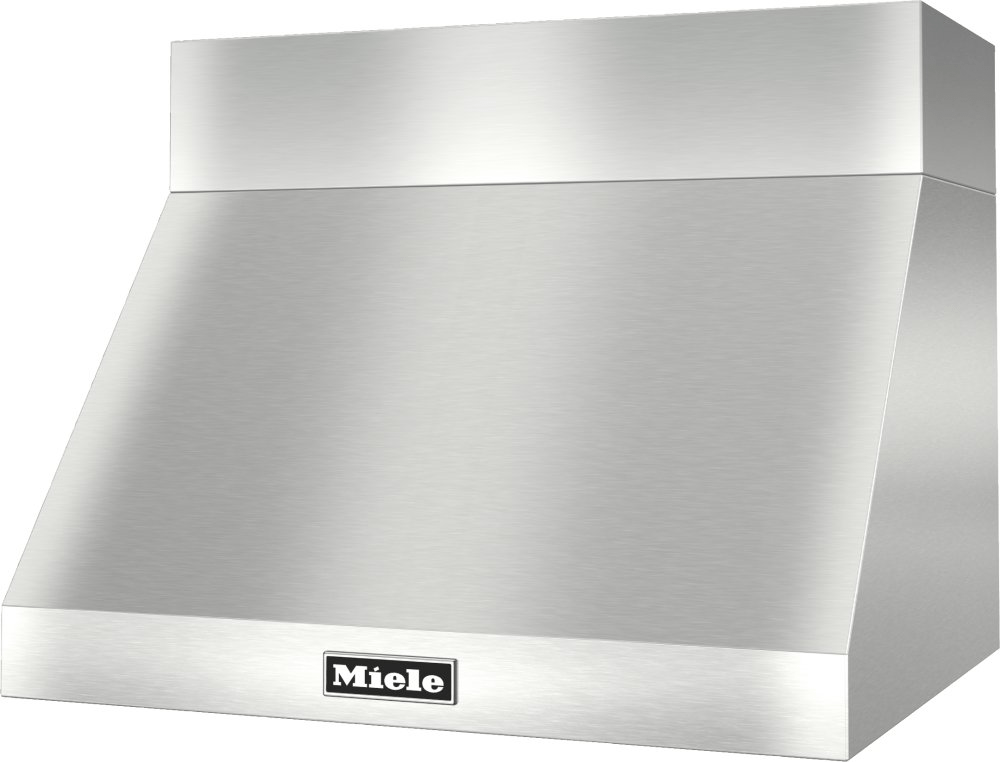

Miele DAR1220STAINLESSSTEEL Dar 1220 - Wall Ventilation Hood For Perfect Combination With Ranges And Rangetops.
Miele DAR1220STAINLESSSTEEL Dar 1220 - Wall Ventilation Hood For Perfect Combination With Ranges And Rangetops.
Colors:
Stainless SteelCall us at (800) 288-1647 for expert assistance in finding the perfect alternative.
Couldn't load pickup availability
When Will I Get My Order?
x
Temperature Sensor
Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.
Miele CleanCover
Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.t
Knob Controls
Beautiful and functional: Metal rotary controls complement the harmonious design of the range hoods.
Dishwasher-Safe Stainless Steel Baffle Filters
Efficient in extracting steam, The high-quality metal grease filters are dishwasher-safe and extremely durable.
LED ClearView Lighting
Eco-friendly and very durable: With up to 4 x 2 W, they provide the cooktop with uniform, warm downlighting.
- Professional design - stainless steel hood, 30 (760) in (mm) wide
- Perfect illumination - LED ClearView lighting
- Dishwasher-safe - 2 high-quality stainless steel grease filters
- Safe and easy to clean - Miele CleanCover
- Auto-vent safety sensor - protects against overheating
| Construction type | |
| Wall ventilation hood | • |
| Required accessories | |
| Blower | • |
| Duct cover | • |
| Operating modes | |
| Recirculated mode | Convertible |
| External operation possible | • |
| Control panel | |
| Rotary knob | • |
| Power levels (number excl. Intensive) | 3 |
| Temperature sensor | • |
| Cleaning convenience | |
| Easy to clean canopy interior CleanCover | • |
| Dishwasher-safe grease collection channel | • |
| Filter system | |
| Number of dishwasher-safe stainless steel baffle filters | 2 |
| Lighting | |
| LED | • |
| Number x W | 2 x 3 W |
| Blower options (to be purchased separately) | |
| DRIB XL internal blower in CFM (m ) | 1189 |
| DREB XL external blower in CFM (m ) | 1189 |
| Technical data | |
| Canopy width in in.(mm) | 30 (760) |
| Canopy width in inches | 29 15/16 |
| Canopy height in in.(mm) | 18 (457) |
| Canopy depth in in.(mm) | 24 1/8 (611) |
| Net weight in lbs. (kg) | 60 (27.0) |
| Length of electrical wire in ft (m) | 2 (0.8) |
| Standard plug fitted | • |
| Overall height for extraction mode and external mo | 617-1,067 |
| Total connected load in kW | 0.81 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Overall height for recirculation mode cooker hoods | 610-1,219 |
| Installation notes | |
| Vent connection at top | • |
| Diameter of vent connection in in.(mm) | 9 7/8 (250) |
| Optional accessories | |
| Chimney cover (H: 152 mm) | DRDC 3006 |
| Chimney cover (H: 305 mm) | DRDC 3012 |
| Chimney cover (H: 457 mm) | DRDC 3018 |
| Chimney cover (H: 610 mm) | DRDC 3024 |
| Recirculation mode conversion kit | DRUU 30 |
| DRRV 1200 | |
| Rear-wall panel (W: 760 mm) | RBS 30 |
| Rear-wall panel (W: 913 mm) | RBS 36 |
| Rear-wall panel (W: 1218 mm) | RBS 48 |
| Active charcoal filter | DKF 23-1 |
Product sheet PDF
Mounting plan PDF
Mounting plan PDF
Warranty conditions PDF
