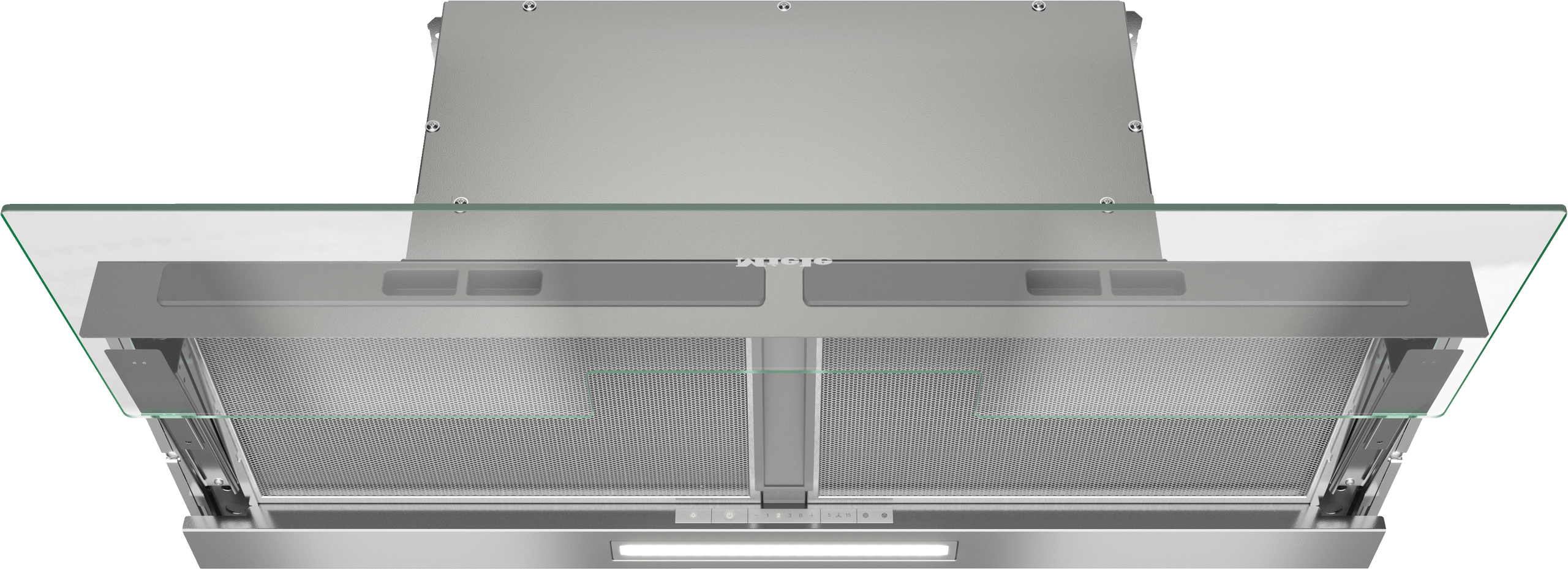

Miele DAS4940TG Das 4940 - Built-In Ventilation Hood For Installation In Narrow Upper Cabinets With Easyswitch Controls
Miele DAS4940TG Das 4940 - Built-In Ventilation Hood For Installation In Narrow Upper Cabinets With Easyswitch Controls
Colors:
OtherTHIS ITEM QUALIFIES FOR FREE DELIVERY!
Call us at (800) 288-1647 for expert assistance in finding the perfect alternative.
Couldn't load pickup availability
When Will I Get My Order?
x
Delayed shutdown
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
filter saturation indicator
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Con@ctivity 3.0
Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
- Perfect combination with Con@ctivity-enabled cooktops
- Light design - transparent glass panel, 36 in (90 cm) wide
- LED strip for uniform lighting
- Efficient filtration- 10-ply stainless steel grease filters
- Recirculation mode - Active AirClean or Longlife AirClean filter
| Design | |
| Built-in ventilation hood | • |
| Operating modes | |
| Recirculated mode | Can be retrofitted |
| Recirculation conversion kit (order separately) | DUU 151 |
| OdorFree charcoal filter (order separately) | DKF 31-P DKF 31-R |
| Design | |
| Color | Transp. glass |
| User convenience | |
| Miele@home | • |
| Automatic function | Con@ctivity 3.0 |
| Electronic controls | • |
| EasySwitch | • |
| Operation | EasySwitch |
| Booster levels | 1 |
| Programmable Intensive switch-off | • |
| Delayed shutdown for 5 or 15 minutes | |
| Grease filter saturation indicator | • |
| Grease filter saturation indicator | • |
| Active charcoal filter saturation indicator | • |
| CleanCover | |
| Cleaning convenience | |
| Easy-to-clean CleanCover hood liner | • |
| Filter system | |
| Number of dishwasher-safe stainless-steel grease filters | 2 |
| Lighting | |
| LED ClearView lighting | • |
| Number x W | 1 x 3 W |
| Light intensity in Lx | 285 lx |
| Color temperature in K | 3500 Kelvin |
| Light dimmer function | • |
| Blower | |
| Dual-action blower | • |
| AC motor | • |
| Safety | |
| Safety shut-off | • |
| Single-ply safety glass (ESG) | • |
| Technical data | |
| Canopy width in in. (mm) | 34 (861) |
| Canopy height in in. (mm) | 2 3/4 (68) |
| Depth of hood canopy in in. (mm) | 12 1/8 (307) |
| Minimum distance above electric cooktops in in. (mm) | 24 1/8 (610) |
| Net weight in lbs. (kg) | 38 (17.0) |
| Length of electrical wire in ft. (m) | 2 (0.8) |
| Standard plug fitted | • |
| Total connected load in kW | 0.353 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
| Installation note | |
| Vent connection at top | • |
| Vent connection at top and rear | • |
| Installation template | • |
| Standard accessories | |
| Non-return flap | • |
Product sheet PDF
Operating and Installation instructions PDF
Warranty conditions PDF
