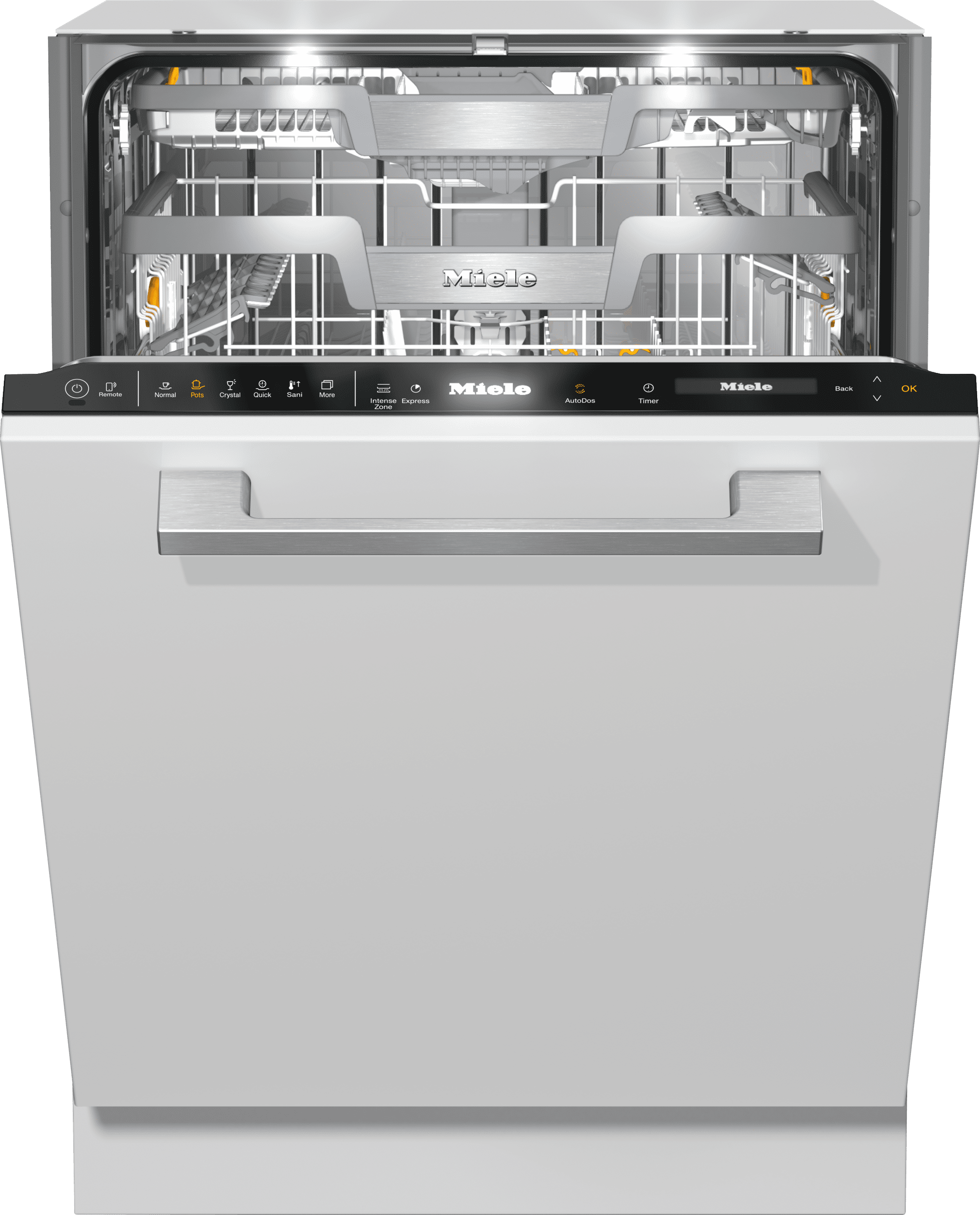

Miele G7566SCVI AUTODOS Stainless Steel - Fully Integrated Dishwasher Xxl With Automatic Dispensing Thanks To Autodos With Integrated Powerdisk.
Miele G7566SCVI AUTODOS Stainless Steel - Fully Integrated Dishwasher Xxl With Automatic Dispensing Thanks To Autodos With Integrated Powerdisk.
Colors:
Stainless SteelCall us at (800) 288-1647 for expert assistance in finding the perfect alternative.
Couldn't load pickup availability
When Will I Get My Order?
x
AutoOpen drying *
All dry: The dishwasher door opens automatically at the end of a program cycle.
BrilliantLight *
Four LEDs illuminate the whole interior with brilliant light - as soon as you open the door.
ComfortClose
Practical: The door is extremely easy to open and close, and stays open in any position.
MultiLingua
Multi-talented: set various languages on the display so that you fully understand every piece of information.
Appliance networking with Miele@home *
Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances - for more options.
EcoPower Technology
Saving water and energy: Cleverly designed water supply reduces consumption.
Half load
Less dishware, less consumption: Automatic load sensing adapts the water consumption.
Hot water connection
Up to 50% electricity savings * : All Miele Dishwashers can be connected to hot water at up to 140(degree)F (60(degree)C).
EcoFeedback
Economical: When a program is selected, estimated water and electricity consumption values are displayed.
3D MultiFlex Tray *
Stress-free loading: Ingenious adjustment options create space in the dishwasher even for small items.
FlexLine Baskets
Flexibility creates convenience: Easy adjustment and flexible loading for the best cleaning results.
Low noise levels
Barely audible: Sound emissions as low as 41 dB(A) * , yet achieving consistently perfect results.
Proven hygiene
Proven by Rhine-Waal University of Applied Sciences: our dishwashers remove more than 99.99% of specific bacteria * .
Normal
The program is sensor-controlled for normally soiled dishware.
Pots & Pans
Maximum cleaning performance: Pots, pans, etc. are cleaned residue-free.
Economy
Extremely economical: The water and energy saving program is perfect for mixed loads.
Energy Saver
Second to none: Minimum electricity consumption per cycle with solar heat system, heat pump or gas-oil heating.
SaniWash
This is our high temperature program offering deep cleaning results.
Clean Machine
Whenever needed: This program cleans the dishwasher thoroughly - guaranteed.
QuickIntenseWash
Short program: Best cleaning results for normally soiled dishware in 58 minutes.
ExtraQuiet
Extremely quiet: The program produces only 38 dB(A) and is so quiet that you can hardly hear it.
Extra Dry
Guaranteed drying: This option dries everything to perfection, even glassware and plastic items.
Express
Sometimes things have to be done at the double: Reduce the length of a program by up to 50%.
IntenseZone
Strong yet gentle: This option for enhanced cleaning performance in the lower basket can be added to a program.
AutoDos
No more manual dispensing: The granulate from the PowerDisk is dispensed automatically in the dishwasher.
Perfect GlassCare
Gentle and delicate: Perfect GlassCare cleans your glassware with care.
SensorDry
Intelligent adaptation of the dishwasher program saves energy and time when drying.
- Innovative design and maximum convenience - 3D MultiFlex Tray
- Communication with an appliance could not be easier - WiFiConn@ct
- Perfect results in less than one hour - QuickIntense Wash
- Perfect illumination for easy loading - BrilliantLight
- All safely loaded where needed - Maxi comfort basket design
| Construction type | |
| Fully integrated dishwashers | • |
| Design | |
| Fascia panel version | Fully integrated fascia |
| Control type | Softkeys |
| Control panel | 1-line text display |
| Display color | White |
| MultiLingua | • |
| Convenience | |
| Miele@home | • |
| Automatic dispensing with PowerDisk | • |
| AutoDos | • |
| Door closing aid | ComfortClose |
| LED Lighting | • |
| Operating noise dB(A) re 1 pW | 40 |
| Countdown indicator | • |
| Delay start up to 24 hours | • |
| In-operation indication | Display |
| Display language selection | • |
| Efficiency and sustainability | |
| EcoFeedback | • |
| EcoPower Technology | • |
| Hot water connection | • |
| Half load | • |
| Energy Star | • |
| Gentle on dishware/glass | |
| Fresh water dishwasher | • |
| AutoOpen drying | • |
| SensorDry | • |
| Active condensation drying | • |
| Perfect GlassCare | • |
| Dishwashing programs | |
| QuickIntenseWash | • |
| Economy | • |
| Normal | • |
| SensorWash | • |
| Pots & Pans | • |
| QuickIntenseWash | • |
| SaniWash | • |
| Energy Saver | • |
| • | |
| Extra Quiet | • |
| Appliance care | • |
| Rinse & Hold | • |
| Grates & Filters | • |
| Rinse options | |
| IntenseZone | • |
| Express | • |
| Extra Clean | • |
| Extra dry | • |
| Basket design | |
| Cutlery loading | 3D MultiFlex tray |
| FlexCare glass holder | 4 |
| FlexCare cup rack | 2 |
| Basket design | MaxiComfort |
| Appliance networking | |
| MobileControl | • |
| WiFiConn@ct | • |
| Required accessories | undefined |
| ShopConn@ct | • |
| AutoStart function | • |
| RemoteService | • |
| Technology and quality | |
| Sensors | - |
| Safety | |
| Waterproof system | • |
| Check filter saturation indicator | • |
| Child Safety lock | • |
| Technical data | |
| Niche width min in in.(mm) | 23 5/8 (600) |
| Niche width max in in.(mm) | 23 5/8 (600) |
| Niche height min in in.(mm) | 33 3/4 (855) |
| Niche height max in in.(mm) | 36 1/4 (920) |
| Niche depth in in.(mm) | 22 1/2 (570) |
| Appliance width in in.(mm) | 23 5/8 (598) |
| Appliance height in in.(mm) | 33 3/4 (855) |
| Appliance depth in in.(mm) | 22 1/2 (570) |
| Appliance depth with door open in in.(cm) | 47 1/2 (120.5) |
| Net weight in lbs. (kg) | 109 (49.0) |
| Total connected load in kW | 1.40 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Electrical frequency standard | 60 |
| Length of water inlet hose in ft (m) | 4 (1.50) |
| Length of water drain hose in ft (m) | 4 (1.50) |
| Length of electrical wire in ft (m) | 3 (1.20) |
| Min. front panel weight in kg | 3.00 |
| Max. front panel weight in kg | 11.00 |
| [can be retrofitted by Service to min.] | 6.00 |
| [can be retrofitted by Service to max.] | 15.00 |
