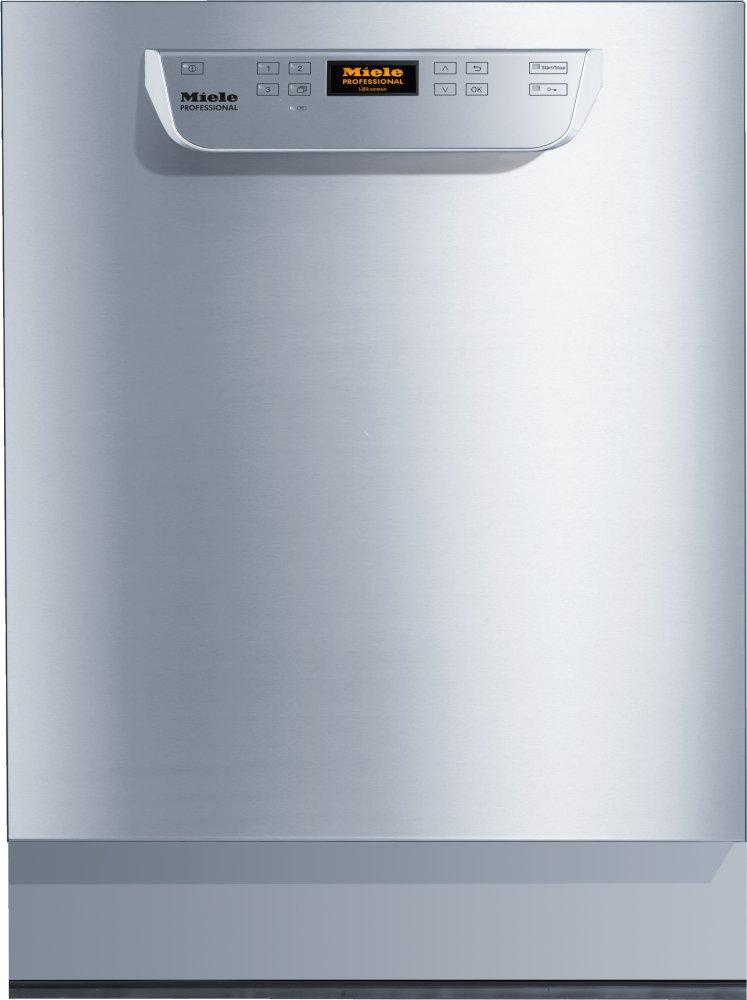

![Miele PG8061UMK208V3PHASESTAINLESSSTEEL Pg 8061 U [Mk 208V 3 Phase] - Built-Under Fresh Water Dishwasher Ada Compliant, Nsf/Ansi 3 Certified For Sanitization. Industrial Use Only.](http://town-appliance.shop/cdn/shop/files/frgmbcldadcv.jpg?v=1748258672&width=1445)
When Will I Get My Order?
x
Delay start and time left display

For maximum flexibility, a delay start time of up to 24 hours can be selected.
Door salt container

Ergonomic convenience: The salt container can be conveniently refilled without removing the lower basket.
AutoClose

A light touch is all it takes: With AutoClose the door closes on its own.
Extensive range of accessories

Always perfect ergonomics and efficiency - with practical accessories, from special baskets to dispenser pumps.
Touch on Metal

The flush controls on the stainless steel fascia are easy to use and clean.
Choice of display languages

Multi-talented: set various languages on the display so that you fully understand every piece of information.
Pure user convenience

All the main information is accessible quickly and easily via the convenient operating display.
Fresh water system

Constantly high cleaning performance and filtration thanks to repeated water changes.
Height-adjustable upper basket

The height of the upper basket can be adjusted to suit the items being cleaned.
Plastic baskets on two levels

It is possible to use the plastic baskets on two levels as an option.
With Professional baskets

Functional design for superb washing and reliable drying results.
Connection for detergent dispenser module

An optional dispenser module can be connected for convenient and economical use of liquid agents.
Low consumption values

Economical and efficient: Miele Professional dishwashers stand out with low consumption values.
Integrated water softener

The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results.
Efficient hot water connection

Connection to a hot water supply shortens the program run times, reducing energy consumption.
Powerful cleaning performance on two levels

High capacity: The most diverse items can be arranged safely on two wash levels.
Quality you can rely on

Durability: Miele Professional dishwashers are tested for a long service life.
AutoOpen assisted drying

Completely dry: The dishwasher door opens automatically at the end of the program.
Perfect GlassCare

A gentle way to a perfect shine: With Perfect GlassCare, your glasses are thoroughly and gently cleaned.
Adjustable program parameters

Adjusting the program parameters as required ensures consistently perfect dishwashing results
Aerosol steam condenser

Dry dishes and good room climate are the result of exceptional condensation performance.
Very short cycle times

Thanks to intelligent professional technology you can benefit from very short programs and perfect results.
Perfect integration under countertops

Perfect appearance thanks to dishwashers that can be built-under.
- Max. cleaning performance * : 152 plates/h
- First-class results thanks to fresh water system
- Very hygienic results - final rinse temperature 185(degree)F (85(degree)C)
- Safe and easy operation - automatic door opening
- Flexible processing of two wire or plastic baskets per cycle
| Construction type and design | |
| Model | Built-under dishwasher |
| Range | Professional |
| Wash system | Fresh water front loader |
| Number of levels | 2 |
| Front | Stainless steel |
| Side walls | Stainless steel |
| Convertible to a freestanding appliance | Stand 1-80, stainless steel |
| Application | |
| Suitable for retirement and care homes | |
| Suitable for small restaurants/bars | |
| Suitable for hospitality industry | |
| Suitable for Bed & Breakfast | |
| Suitable for canteens | |
| Suitable for child care facilities | |
| Suitable for fast food restaurants | |
| Performance data | |
| Circulation pump, Qmax in gal/min (l/min) | 103 (390) |
| Shortest program duration in min. | 15 |
| Maximum final rinse temperature in °F (°C) | 185 (85) |
| Cleaning performance, plates/h | 152 |
| Cleaning performance, baskets/h | 8 |
| Possible to wash plastic baskets on two levels | |
| Service life in wash cycles | 15000 |
| Tested operating hours | 15000 |
| Control | |
| Control system | TouchControl |
| Program selection | Touch on Metal |
| Max. delay start in h | 24 |
| Countdown indicator | • |
| Program sequence indicator | • |
| Choice of display language | • |
| Language-neutral operation | • |
| Standard electrical connection | |
| Electrical connection | 3 PH. 208V 60HZ |
| Heater rating in kW | 5.40 |
| Total connected load in kW | 5.80 |
| Fuse rating in A | 20 |
| Length of power cord in ft (m) | 7 (2.20) |
| Possible voltage variant 1 | |
| Electrical connection | 2 PH. 208V 60HZ |
| Heater rating in kW | 5.40 |
| Total connected load in kW | 5.80 |
| Fuse rating in A | 30 |
| Water connection/drainage | |
| Cold water [number] | 1 |
| Hot water [number] | 1 |
| Required flow pressure in bar | 1-10 |
| Drain hose [DN] | 22 |
| Maximum delivery head for drain pump in inches (cm) | 39 3/8 (100) |
| Integrated water softener | • |
| Maximum water hardness in gpg (mmol/l) | 10.7 (10.70) |
| Water consumption per wash cycle in gal (l) | 2.1 (8.00) gll (l) |
| Dimensions and weight | |
| External dimensions, net height in inches | 32 5/16 (820) |
| External dimensions, net width in inches | 23 9/16 (598) |
| External dimensions, net depth in inches | 23 7/16 (595) |
| External dimensions, gross height in inches | 37 1/16 (940) |
| External dimensions, gross width in inches | 26 5/8 (675) |
| External dimensions, gross depth in inches | 27 (685) |
| Usable space in wash cabinet, width in inches (mm) | 22 1/16 (559) |
| Usable space in wash cabinet, height in inches (mm) | 20 7/8 (530) |
| Usable space in wash cabinet, depth of upper basket in inches (mm) | 18 11/16 (474) |
| Usable space in wash cabinet, depth of lower basket in inches (mm) | 19 15/16 (505) |
| In-feed height above floor in inches (mm) | 8 9/16 (216) |
| Net weight [kg] | 139 (63) |
| Gross weight in lbs. | 153 (69) |
| Maximum floor loading in N | 1200 |
| Emission values | |
| Emission sound pressure level in workplace (LpA) | 45 dB(A) re 20 Pa |
| Sound power (LwA) in dB(A) re 1 pW | 57 |
| Heat output to the room in Mj/h | 1.08 |
| Programs | |
| Universal | |
| Short | |
| Intensive | |
| Reactivation | • |
| Drainage by pump | • |
| Baskets | |
| 1 x O 891 upper basket for cups | • |
| 1 x U 890 lower basket for inserts | • |
| 1 x E 810 insert for dessert plates | • |
| 2 x E 816 inserts for plates | • |
| 2 x E 165 inserts for cutlery | • |
| Height-adjustable upper basket | |
| Features | |
| Drying | AutoOpen assisted drying |
| 1 Combi dispenser/door for powder and liquid media | • |
| Wash cabinet made from high-quality stainless steel | • |
| In-door salt container | • |
| AutoOpen assisted drying | |
| AutoClose | • |
| Perfect GlassCare | • |
| Aerosol steam condenser | • |
| Adjustable temperature holding time | • |
| Adjustable final rinse temperature | • |
| Adjustable wash temperature | • |
| Adjustable rinse time | • |
| Optical interface | • |
| A wide range of accessories (optional) | • |
| Connection options | |
| External dispensing module for liquid cleaning agent | • |
| Standards, test certificates, and symbols | |
| CE | • |
| Complies with Machinery Directive 2006/42/EC | • |
| EMC | • |
| Interference suppression | • |
| VDE | • |
| EN 1717 | • |
| ADA compliant | • |
Product sheet PDF
Operating instructions/Installation instructions PDF
Installation plan PDF
Hygiene Certificate PDF
Stainless Steel
