Thermador One Two Free Sales Event - Enjoy exclusive savings with purchase of qualifying Thermador appliances. Download Valid: 01/01/2025-12/31/2025

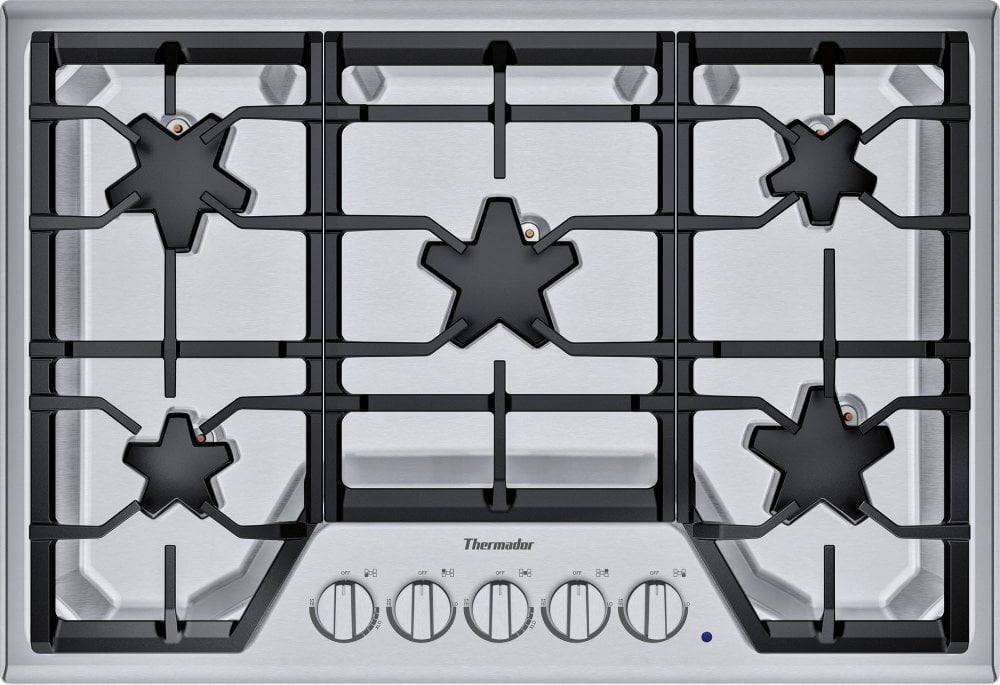

Thermador® offers an impressive 30-inch gas cooktop with 5 patented Star® burners, including a center-mounted power burner, 2 ExtraLow® Select simmer burners, and 52,000 BTUs of overall heat output.
- Star® Burners: Patented Star® Burner's unique five-point design offers more ports and more flame distribution that a round burner.
- Continuous Grates: Continuous grates allow pots and pans to move effortlessly across the cooktop.
- ExtraLow® Select Burner: ExtraLow® Select burner with 5 precise settings is perfect for simmering or holding foods and melting chocolate without scorching or burning.
- QuickClean Base®: With a teardrop emboss reduces food buildup near the base and contains liquid spills for quick cleaning
- Electronic Re-Ignition: Electronic re-ignition will automatically re-ignite the burner in case the flame goes out
- Star-K: STAR-K Sabbath compliant
Additional Features
- Knobs feature a safety "push to turn" system.
- Seamless stainless steel burner pan makes for simpler surface cleaning.
- High-grade, quality die cast metal knobs.
- Sleek control panel features glass and stainless steel.
- Progressive illuminated light ring around each knob indicates burners in use.
| Technical Specification details | |
| Energy source | Gas |
| Type of control | sword knobs |
| Safety device | automatic reignition |
| Construction type | |
| Color of frame | Stainless Steel |
| Color of surface | Stainless Steel |
| Installation type | Built-in |
| Number of electric elements | 0 |
| Number of electric cooking zones | 0 |
| Number of gas burners | 5 |
| Number of halogen elements | 0 |
| Installation Type | Built-in |
| Type of grate | Cast iron |
| Total number of cooktop burners | 5 |
| Number of radiant elements | 0 |
| Number of electric warming zones | 0 |
| Size and weight | |

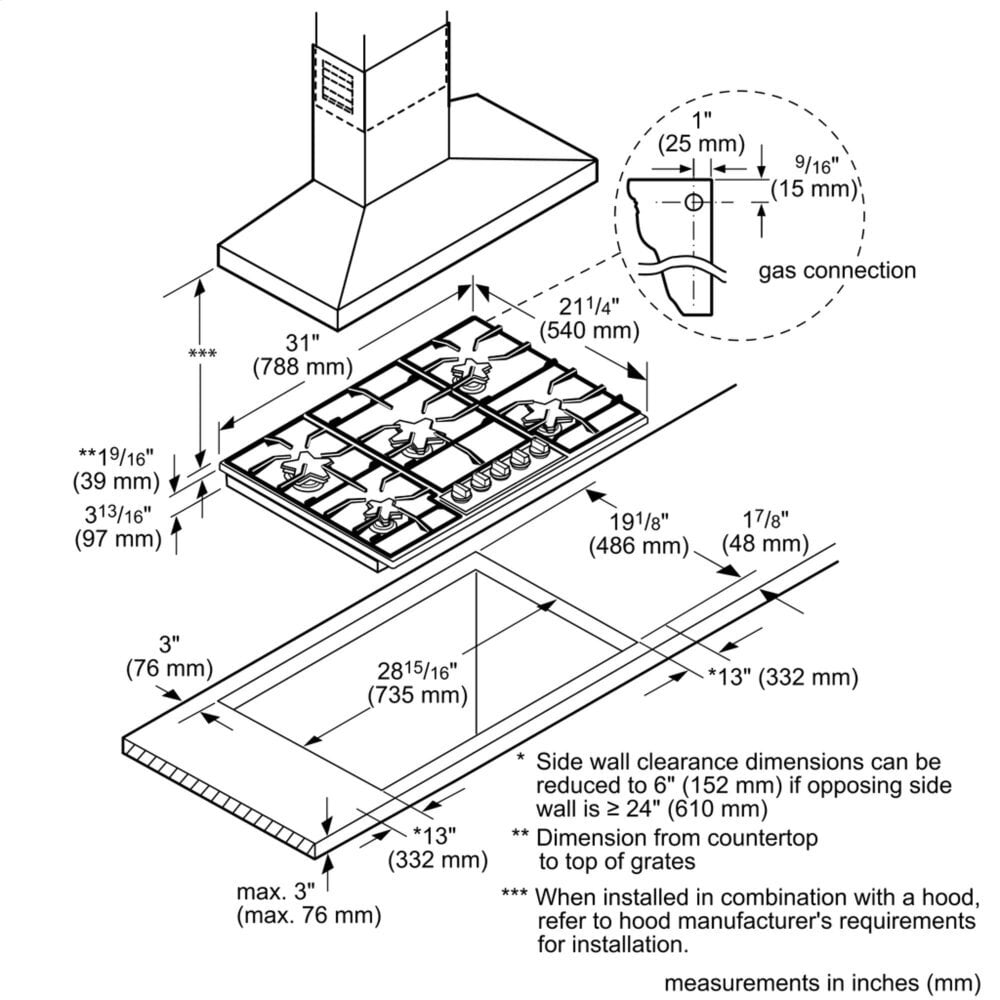

| Overall appliance dimensions (HxWxD) (in) | + 3 13/16'' x 31'' x 21 1/4'' |
| Net weight (lbs) | 37.000 |

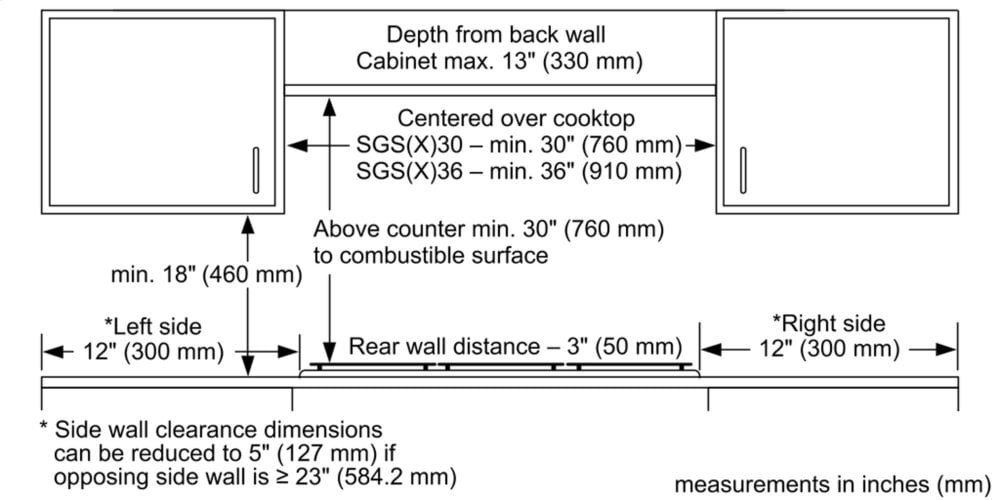

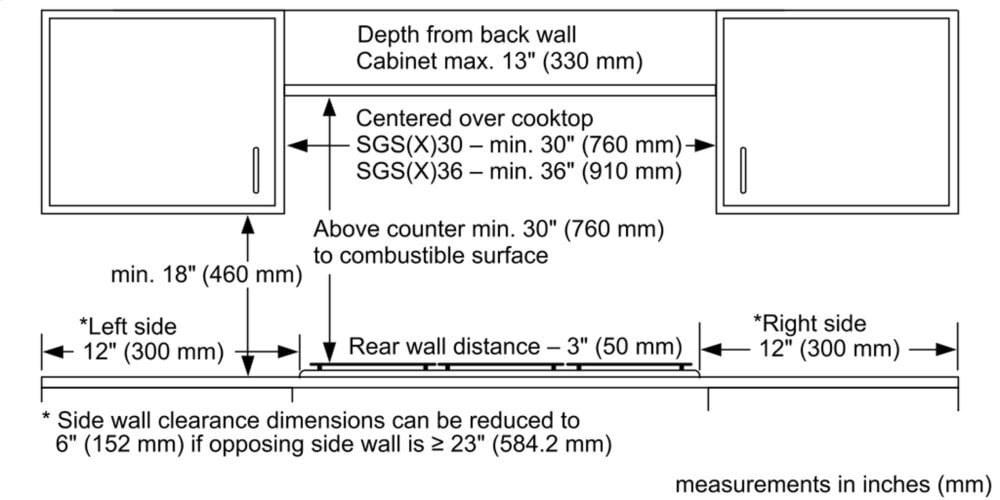

| Minimum distance from counter front (in) | 1 7/8'' |
| Minimum distance from rear wall (in) | 3'' |
| Cooking zone 1 | |
| Location of 1st heating element | Flexible |
| Safety | |
| Type of safety device for gas | Without |
| Residual heat indicator | without |
| Safety device | automatic reignition |
| Connection | |
| Gas connection rating (W) | 15,240 |
| Location of gas connection | bottom, rear, right |
| Frequency (Hz) | 60 |
| Energy source | Gas |
| Power Cord Length | 60'' |
| Watts (W) | 1,800 |
| Accessories | |
| Included accessories | 1 x cast iron pan support |
