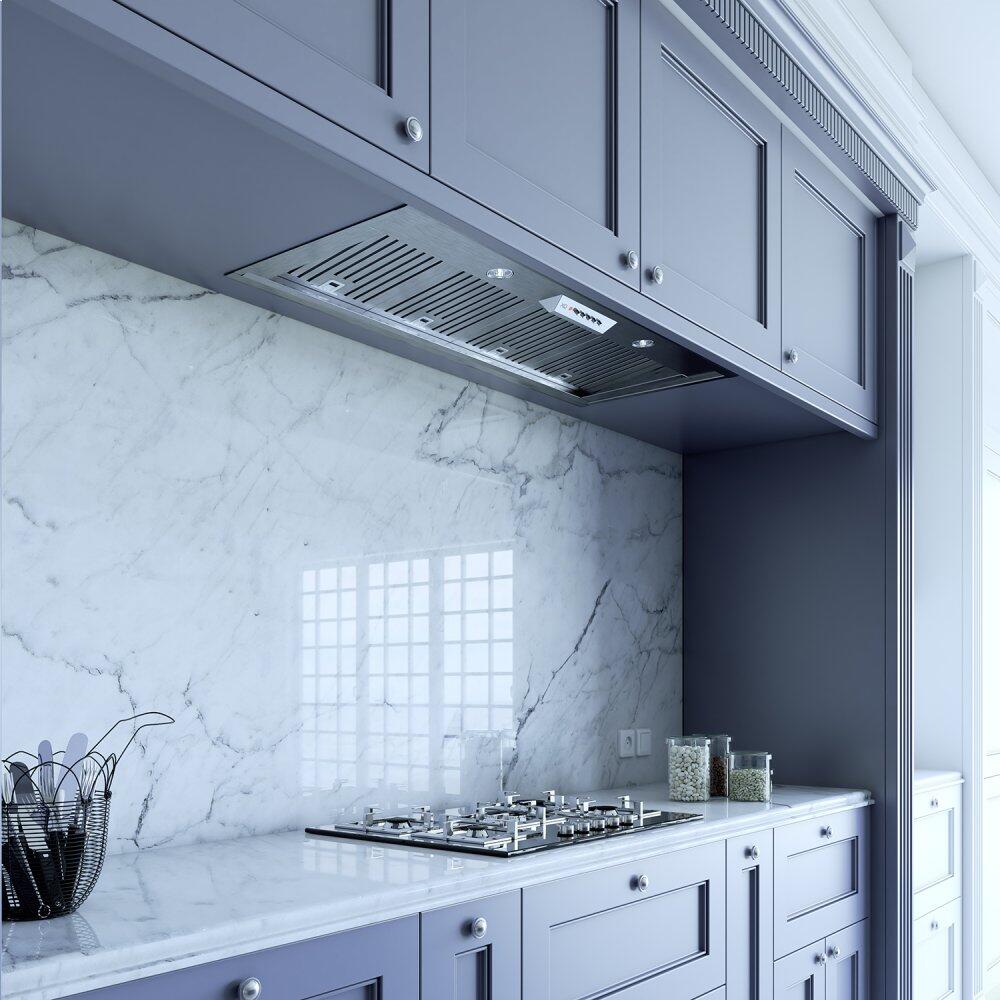

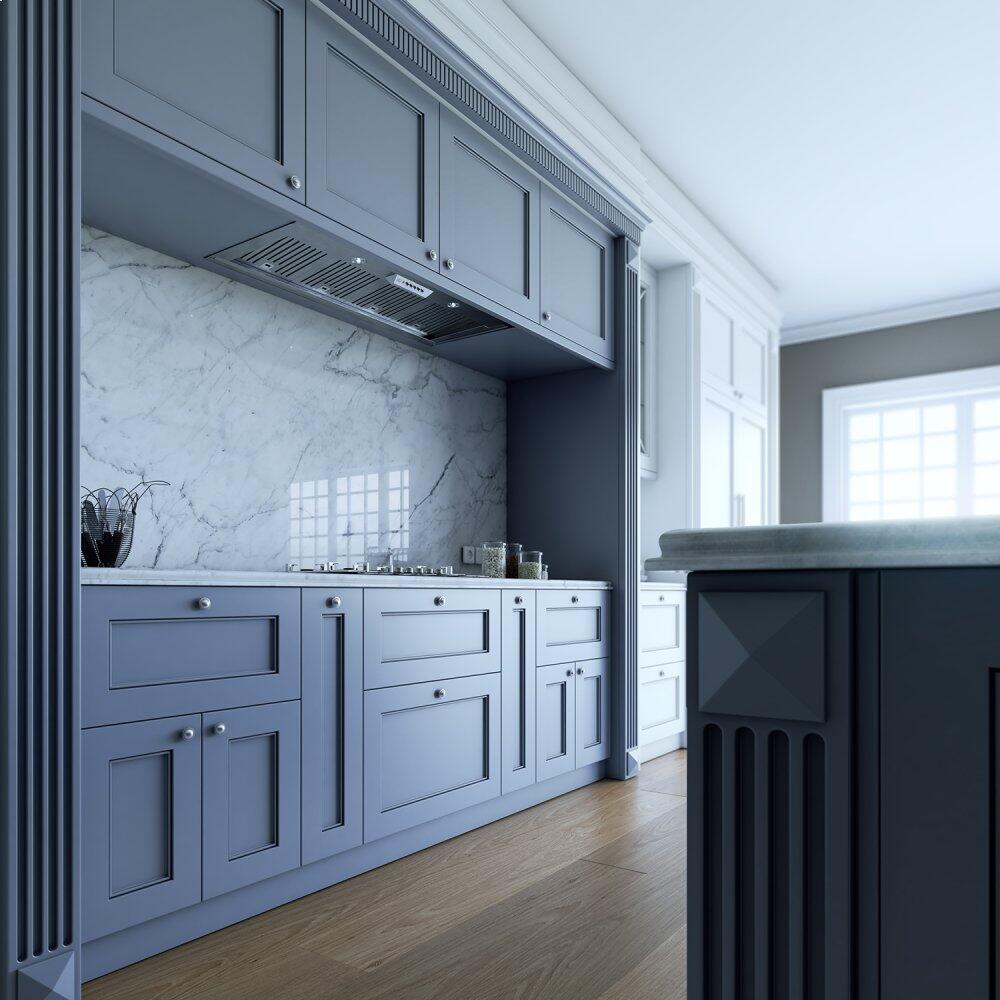

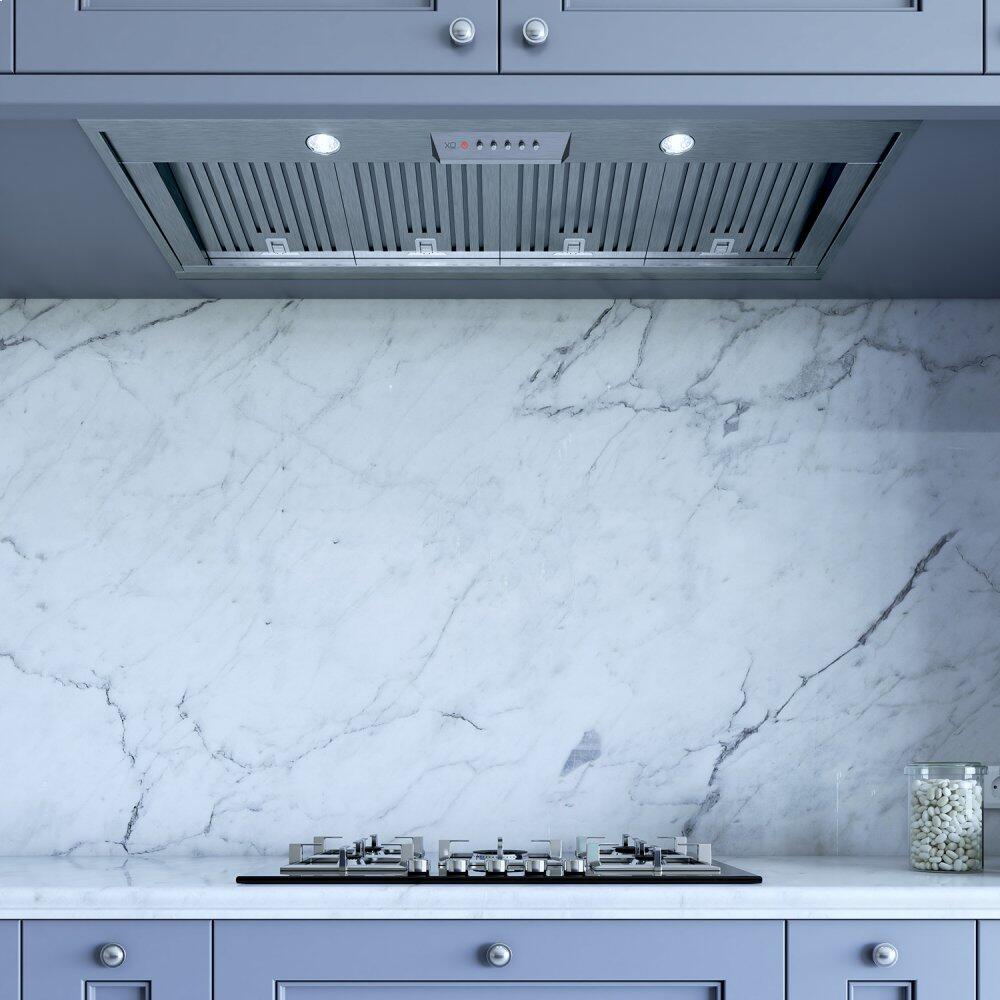

The Xoi45 Insert Model Is Available In Two Different Depths To Better Satisfy Your Design Needs. His High Powered Integrated Blower Which Allows You To Match Your Custom Hood To Your Kitchen Is Simple, Affordable And Easy To Install. Peerless Fit And Finish, Designed And Crafted In Italy.
| Product Dimensions | 45 3/4' x 18 1/2' x 11 1/2' |
| Carton Height | 12' |
| Carton Width | 50' |
| Carton Depth | 18' |
| CutOut Dimensions | Cut Out 44 1/2' x 16 3/8' |
| Gross Weight (lbs) | 30 |
| Net Weight (lbs) | 30 |
| Mounting Height | Mounts 27' - 32' Above Cooking Surface |
| Duct Size | 8' Round Vertical Duct |
| Recirculation | Vented operation only |
| Sones | 2.0 -8.0 Sones |
| Lighting | Twin LED Lights |
| Controls | Illuminated Electronic Controls |
| Filters | Dishwasher Safe Pro Stainless Steel Baffles |
| MAX CFM | 1000 |
| UPC | 00814830012801 |
