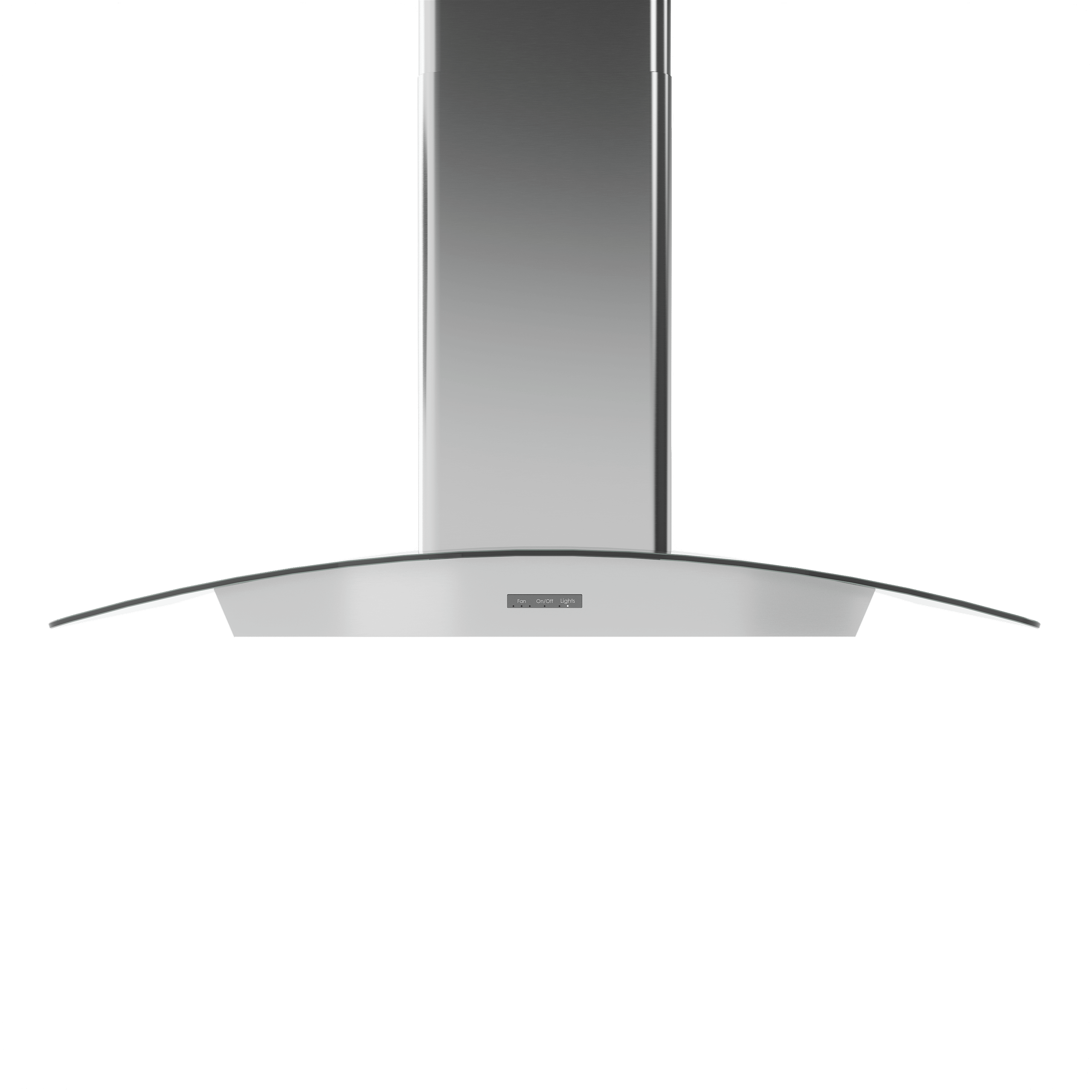

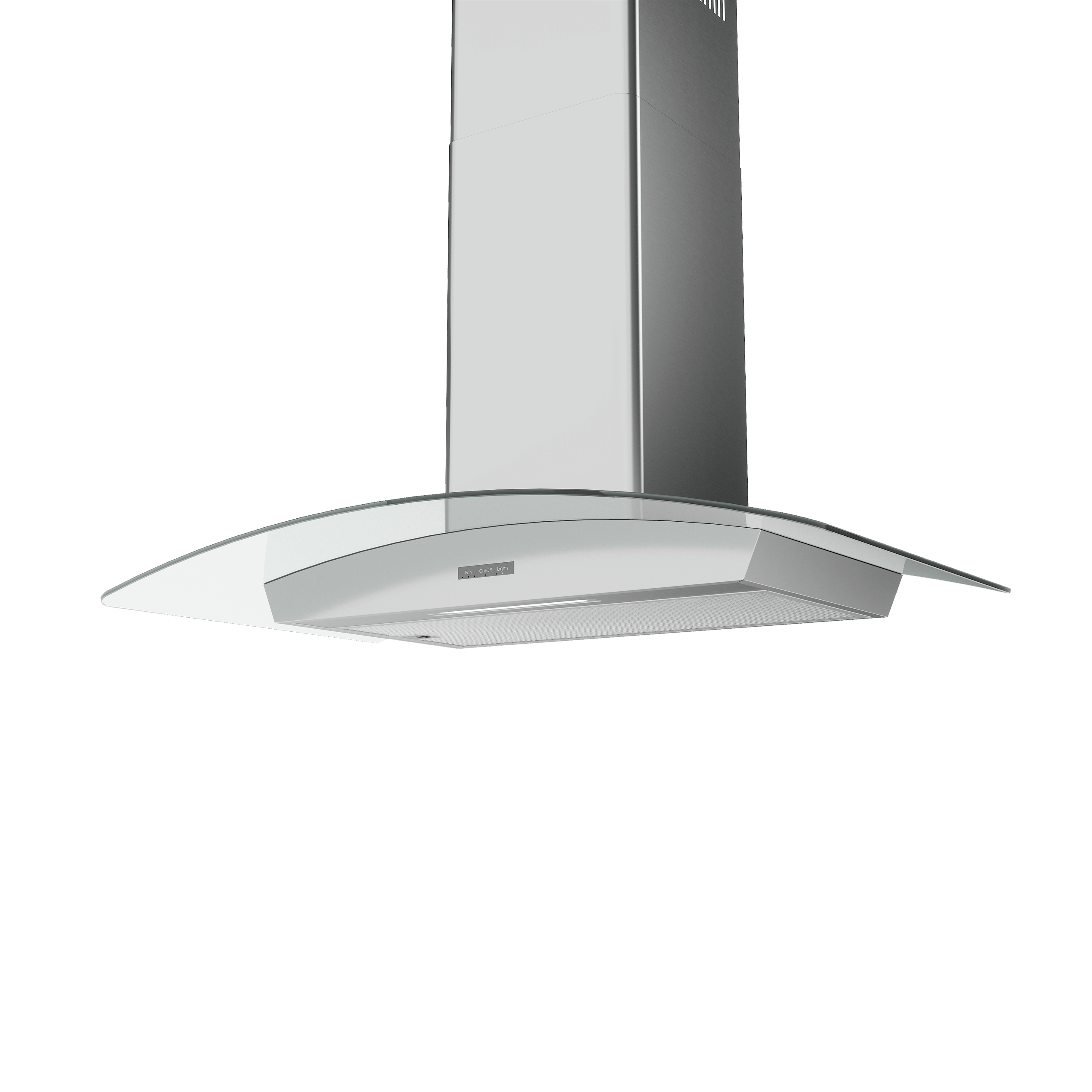

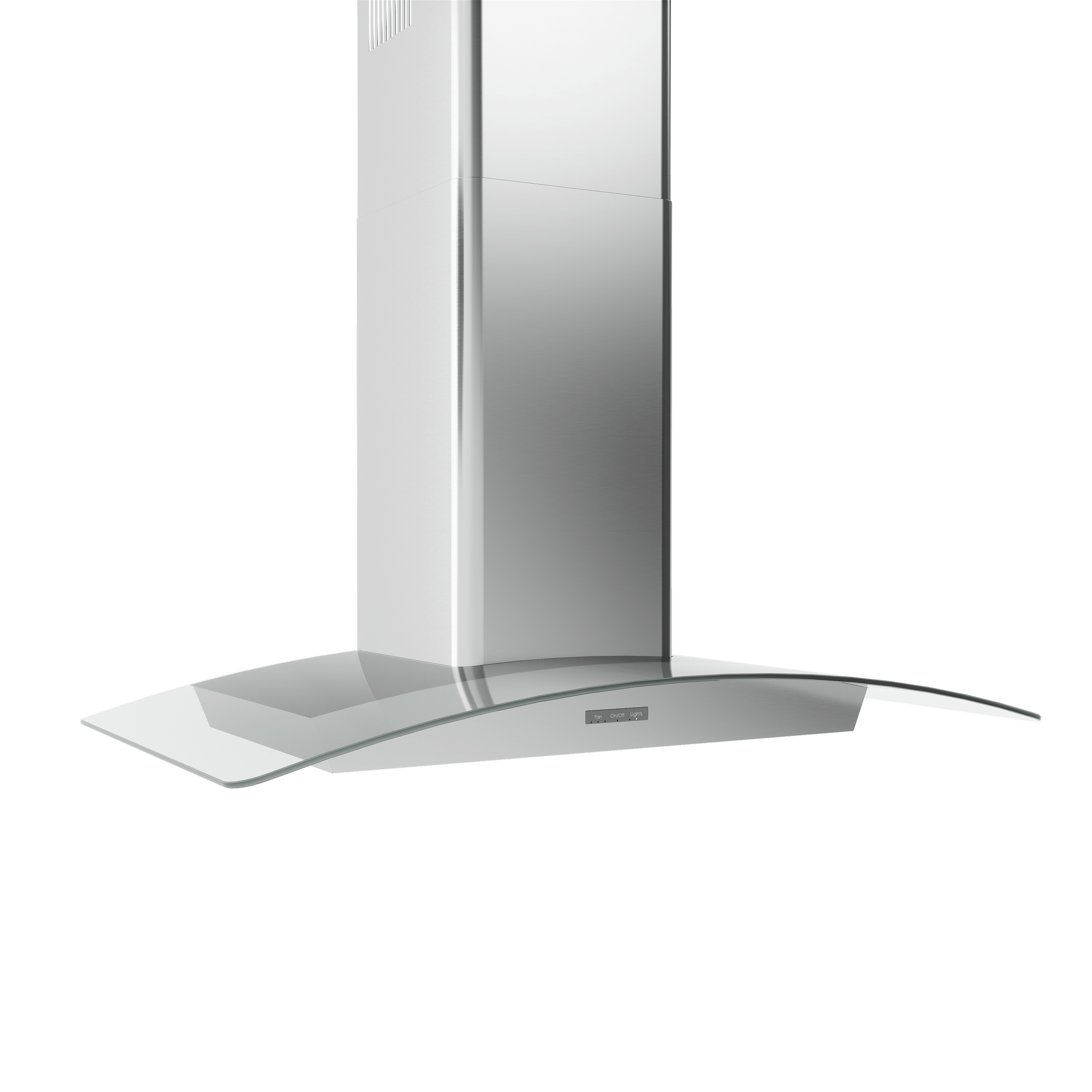

Zephyr BMIE36CG Brisas Curved Glass Chim. Wall, 36" G, 600 Cfm, Act, Led
Zephyr BMIE36CG Brisas Curved Glass Chim. Wall, 36" G, 600 Cfm, Act, Led
SKU: BMIE36CG
UPC: 646328007385
Colors:
Stainless Steel
Call to Order
We’re here to help! Call us at (800) 288-1647 to place your order or get expert advice.
Couldn't load pickup availability
When Will I Get My Order?
x
Brisas Curved Glass Chim. Wall, 36" G, 600 Cfm, Act, Led
- Capacitive Touch Controls
- Airflow Control Technology™ (ACT™)
- LED light strip
- Dishwasher Safe Aluminum Mesh Filters
- Dual-Level Lighting
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
| Brand | Brisas by Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Convertible |
| UPC | 646328007385 |
| GTIN | 00646328007385 |
| Country of Origin | Taiwan |
| Model Group | BMI-C |
| Model Name | Brisas BMI Wall |
| Collection | Brisas |
| Blower Included | Yes |
| Blower CFM w/ACT | 390, 290 |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 290 |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Stainless Steel + Glass |
| Controls Type | Capacitive Touch |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 1 |
| Watts Per Bulb | 5 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200044 |
| Duct Discharge | Vertical |
| Duct Size; Vertical; IN | 6 |
| Mounting Height Above Cooktop; IN | 24 - 34 |
| Voltage | 120 |
| Maximum Amperage | 2.6 |
| ADA Compliant | No |
| Warranty Parts / Labor | 1 / 1 |
| Compatible Appliances | BRC-0006, B1C-00MI |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 320 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 35.1875 |
| Net Depth; IN | 19.75 |
| Net Height; IN | 23 - 42 |
| Weight; LBS | 53 |
| Shipping Length; IN | 38.7 |
| Shipping Width; IN | 21.9 |
| Shipping Height; IN | 25.5 |
| Shipping Weight; LBS | 59.4 |
| Shipping Method | LTL |
| Freight Class | 300 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
| Duct Type | Vertical |
